New SUNBANK Single Arm Backshell now available
SUNBANK - New Product Launch

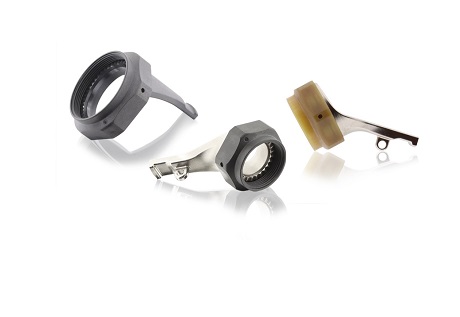

The Single Arm Composite Backshell developed by SUNBANK is specifically designed to offer a robust and unique performance in terms of reliability and functionality for defense, aerospace and other harsh environment applications. Our design team took into consideration different scenarios and needs for protecting cable connections from damage and providing better strain relief. The Single Arm backshell family comes in 3 types of configurations, Straight, 45°, and 90°. It is designed to satisfy requirements for all sizes of MIL-DTL-38999 Series I, II, and III connectors.
A high-performance backshell across the board
The Single Arm does not only provide unique support and strain relief to open wire bundles, it also offers a reliable grounding option with its solderable ground lug. Due to its flexibility, this new product can also support different plating combinations to suit the needs required for specific applications.
The Single Arm is also designed to be economically cost-effective but highly reliable, with high grade thermoplastic materials intended for critical applications and environments, especially on military and commercial EWIS applications that require weight per part savings, corrosion resistance and electromagnetic interference protection.
Expertise in composite molding
The Single Arm has many advantages compared to its die casted metallic counterpart. The composite families use high grade engineered thermoplastic and are not prone to electromagnetic disturbance, “stealth ability”, and are stronger in terms of vibrations due to less harmonic resonance because of the weight reduction (40% lesser compared to Aluminum). The weight savings of the backshell will have a positive impact on the total weight of the electrical system and contribute to fuel savings and a lighter environmental footprint per aircraft.
The development of Single Arm technology also provides the benefits of detent self-locking, a ratcheting coupling ring using non-corrosive clips located within. The audible ratcheting noise during the installation process guarantees correct engagement.
